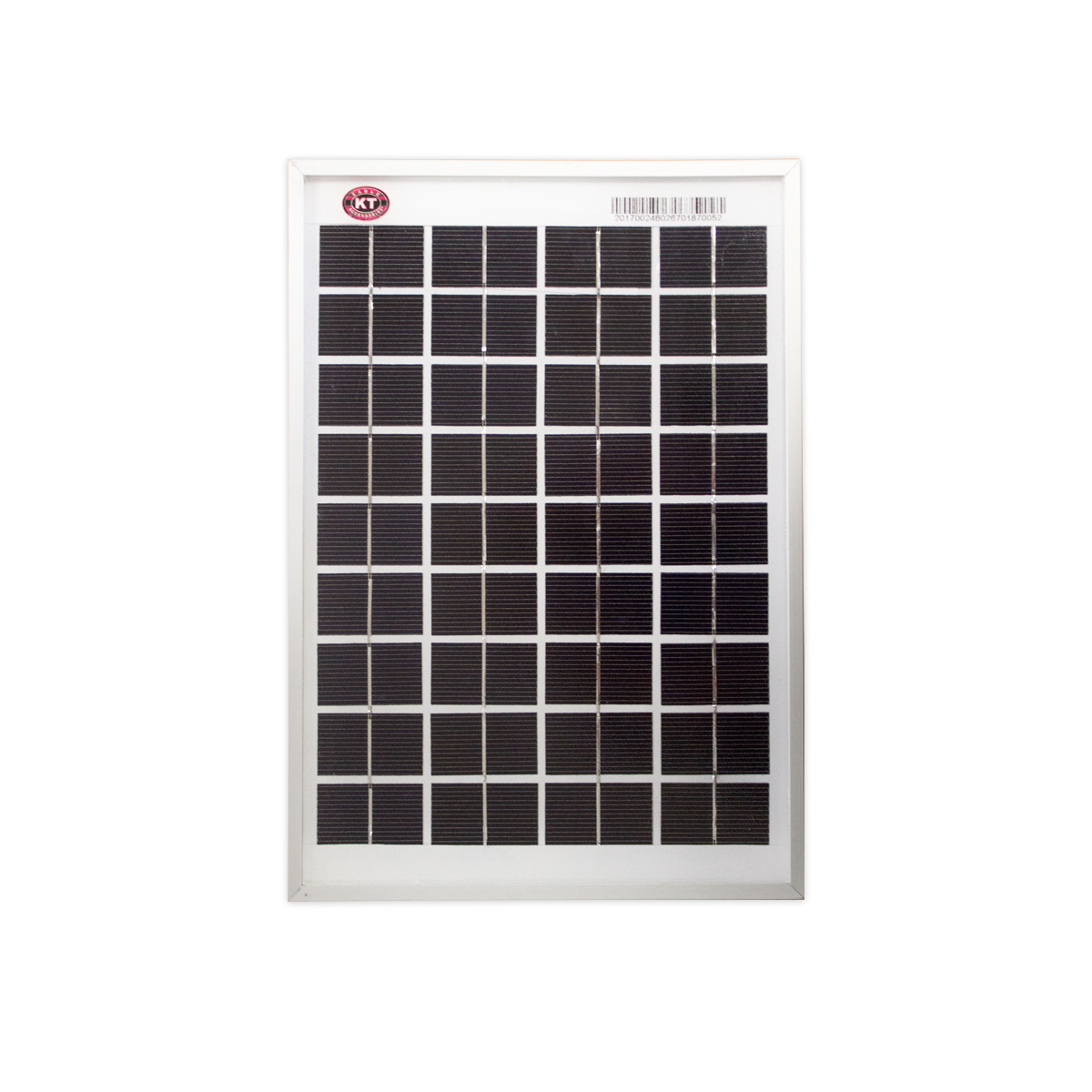

KT Solar – Solar Panel Single Cell 12V 5Watt (KT70714)

Model No. KT70714
Solar Panel 12V Single Cell, 5 Watt

– Dimensions: 267mm H x 187mm W x 17mm D
– 3M positive/negative cables with alligator clamps
– 10 year warranty / 25 year efficiency guarantee
– High quality construction
– Individually barcoded for warranty registration
– 5 Accreditation certificates
– Class A

Brochure: KT70714

Product Code (SKU): kt-solar-KT70714 Category:
Tweet about this on TwitterShare on FacebookGoogle+Pin on PinterestEmail to someonePrint this page
Maximum Power (Pmax) 5Wp
Power Tolerance +3%
Maximum Power Voltage (Vmp) 17.8V
Maximum Power Current (Imp) 0.28A
Rated Voltage 12V
Open Circuit Voltage (Voc) 21.3V
Short Circuit Current (Isc) 0.31A
Operating Temperature -40oC to +85oC
Product Application Class A
Max System Voltage 500V DC
Product Weight 0.78Kg
