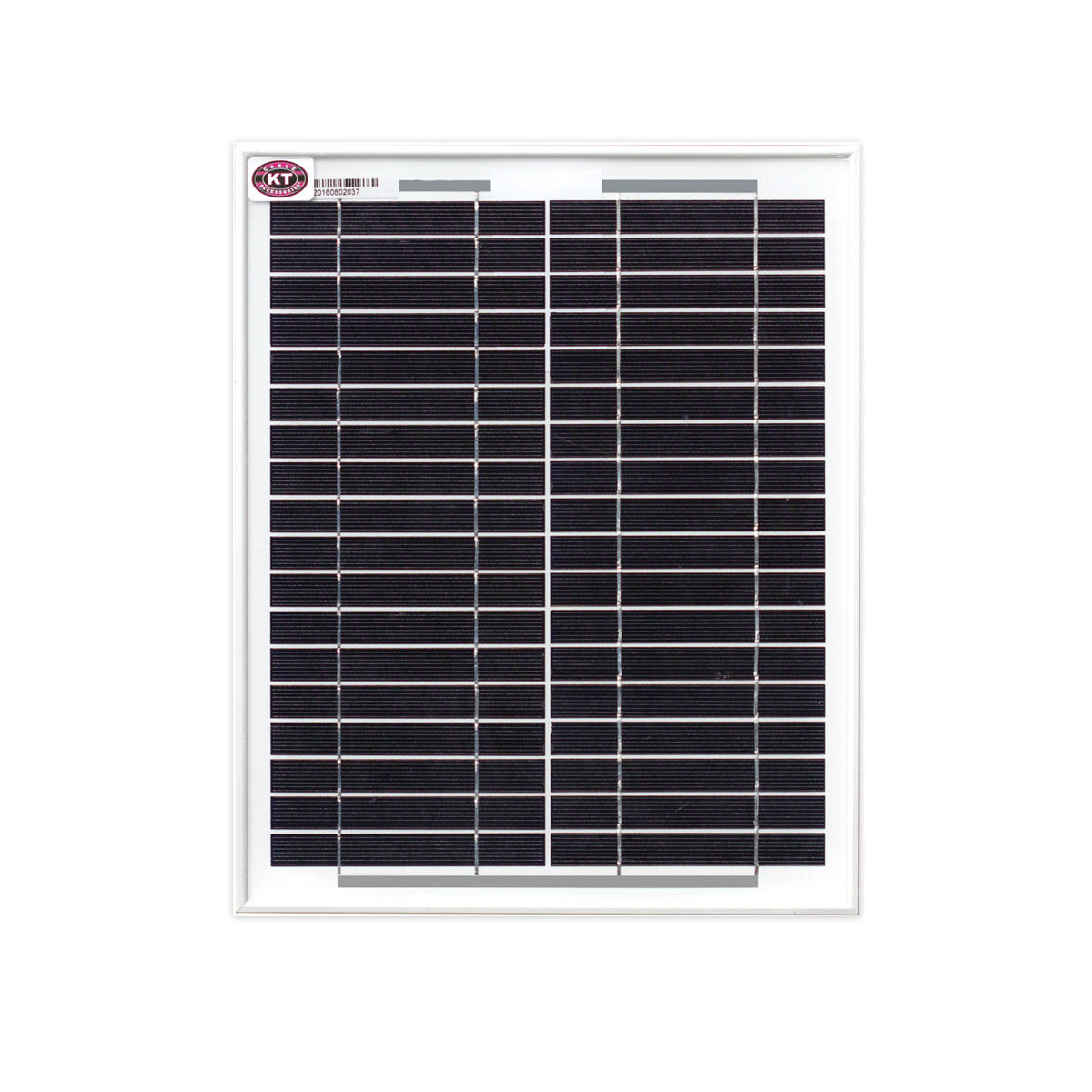

KT Solar – Solar Panel Single Cell 12V 10Watt (KT70715)

Model No. KT70715
Solar Panel 12V Single Cell, 10 Watt

– Dimensions: 365mm H x 240mm W x 17mm D
– 3M positive/negative cables with alligator clamps
– 10 year warranty / 25 year efficiency guarantee
– High quality construction
– Individually barcoded for warranty registration
– 5 Accreditation certificates
– Class A

Brochure: KT70715

Product Code (SKU): kt-solar-KT70715 Category: Solar Panels, Kits, Blankets

Maximum Power (Pmax)	10Wp
Power Tolerance	+3%
Maximum Power Voltage (Vmp)	17.3V
Maximum Power Current (Imp)	0.58A
Rated Voltage	12V
Open Circuit Voltage (Voc)	21.7V
Short Circuit Current (Isc)	0.62A
Operating Temperature	-40oC to +85oC
Product Application	Class A
Max System Voltage	600V DC
Product Weight	1.0Kg
