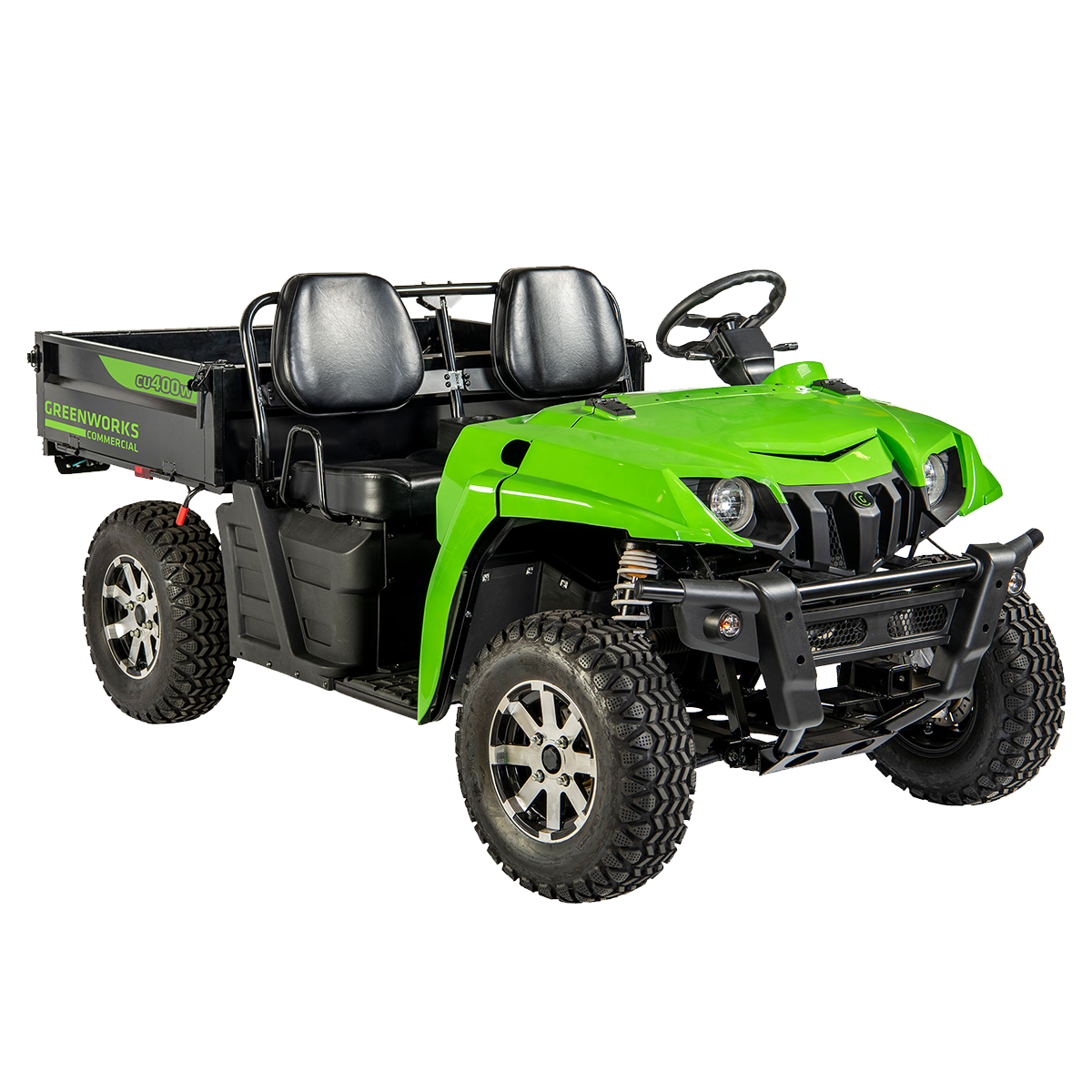

CU400 8kWh Work Utility Vehicle

The GREENWORKS® commercial utility vehicle (UTV) is a dependable workhorse, equipped with a powerful 8kW max gTRON drive system.

This high performance UTV operates with the equivalent power of a 22hp / 352cc displacement petrol engine, its impressive 8kWh battery module provides up to 105km on a single charge for all day commercial use.

The CU400’s intelligent control system automatically adjusts to various terrain conditions and ensures exceptional traction control and handling in any environment. Users can safely and confidently tackle slopes of up to 20° and accelerate to a maximum speed of 24kph.

A robust 250kg (550lb) electric dump bed, 454kg (1,000lb) payload capacity and 227kg (500lb) rear towing capability make light work of any hauling or transporting job. The 216mm (8.5″) ground clearance and astounding 180cm (71″) wheelbase allows for easy handling in any off-road situation.

The high performance built-in 8kWh lithium-ion battery module processes information extremely quickly ensuring all interconnected systems work to preserve and perform as efficiently as possible. Prismatic cells and safe LFP technology deliver maximum safety and longevity while retaining 70% state-of-charge after 2,000 full charge cycles. High energy density cells, a strong protective aluminium case and increased temperature resistance/regulation provide protection and performance while operating in extreme conditions.

The integrated Battery Management System (BMS) efficiently controls charging, overcharge protection, temperature regulation (battery warm-up/cool down), energy conservation and maximum discharge current.

Product Code (SKU): 7402507AU Category:
Tweet about this on TwitterShare on FacebookGoogle+Pin on PinterestEmail to someonePrint this page
Model CU400W
Voltage 82V
Motor Type AC induction
Max Power Rating 15kW
Wheelbase 180cm (71″)
Ground Clearance 216mm (8.5″)
Payload Capacity 454kg (1,000lbs)
Tow Capacity 227kg (500lbs)
Horsepower 22hp equivalent
Engine Displacement 352cc equivalent
IPX Rating 4
Multi-mode Switch L/M/H
Main Gearcase Direct drive
Wheel Drive System Rear 2WD
Front Diff Lock Electric control
Suspension System Independent. A-Arm Type
Brakes (front/rear) Hydraulic disc
Cargo Bed Capacity 250kg (550lbs)
Cargo Bed Dimension (mm, L x W x D) 1,320 x 889 x 290 (52″ x 35″ x 11.4″)
Ground Speed Up to 24kph
Tyres/Wheels 24×8-12 front 24×8-13 rear
Runtime/Range up to 105km
Weight (w/battery) 485kg
Battery Voltage 82V
Battery Capacity 8kWh
Battery Weight 79.8kg
Charger Charge Watts 1.5kw
Charger Charge Time 7 hours
Charger Weight 2.8kg
